Industrial Popular Pouch Packaging For Liquid Cost-effective
1.Product introduction of Pouch Packaging For Liquid:
Features：
1.The machine is featured with compact structure,durable,rational design and concise.
2.Adopts light sensor control system,stepping motor control film transporting system,reliable,and stable performance.
3.Using VVVF,operation is much more stable,low noise and low malfunction.
4.It can finish all processes from feeding,metering,filing,date printing,air exhaust,finished product transferring and counting automatically.
5.With spring pressure knife principle,pneumatic cutting, producin 5 linking bags is more stable.
Applications:

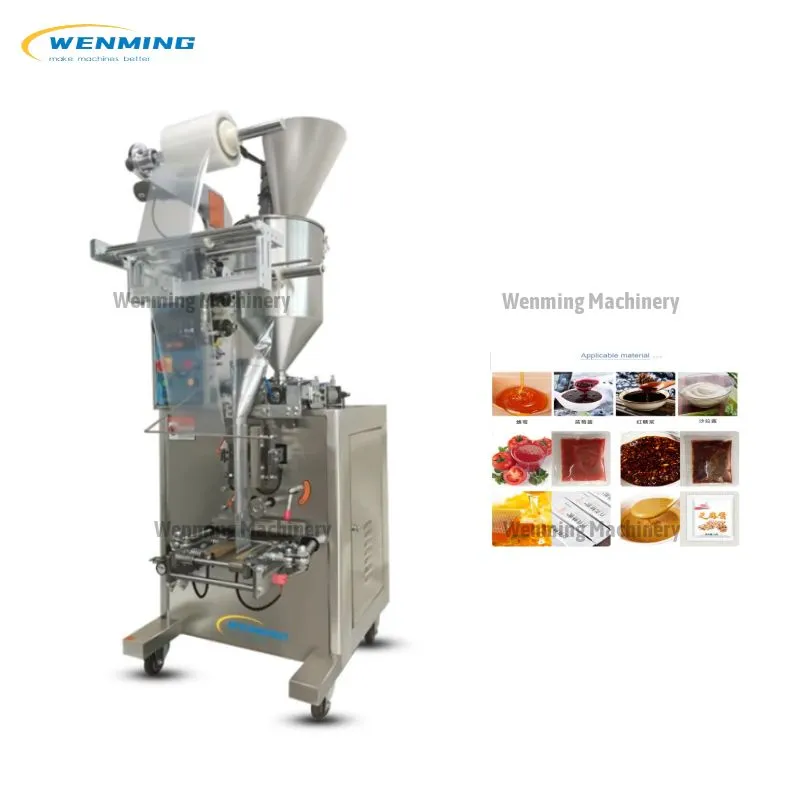

Liquid/Jam: detergent, cleaning solvent，yellow wine, soy sauce,Juice,beverage, tomato paste,Peanut paste, chili sauce etc.
2.Technical parameters & Quotation of Pouch Packaging For Liquid:
|
Model |
WM-BZ150 |
|
Bag Length |
30-200mm |
|
Bag Width |
50-150mm |
|
Metering Range |
10-250ml |
|
Packing Speed |
30-30bas/min |
|
Packing Fill Roll diameter |
Max.300mm |
|
Film Thickness |
0.04-0.08mm |
|
Power Supply |
220V50Hz.2kw |
|
Machine weight |
350kg |
|
Packing Film Material |
OPP/CPP.OPP/CE.MST/PE/PET/PE |
|
Machine Size |
1000*700*1620mm |
|
Metering System |
Piston Type |
